Glass-Lined Batch Reactors K Type

Flexible, Durable and High-Performance

The K Type glass-lined reactor is engineered for precision and versatility. With a detachable lid and body, it offers superior flexibility for processing, maintenance, and post-operation cleaning. The lid is tightly secured using premium industrial-grade clamps and gaskets, delivering a dependable seal at pressures of up to 4 bar.

________________________________________

Versatile Design for Small-Scale Chemical Processing

Perfect for small-capacity operations, the type of pressure vessels supports multiple agitation methods by swapping it stirring blade of choice, making it adaptable to a wide range of chemical processes. Its open-top construction ensures easy access while maintaining outstanding structural integrity.

________________________________________

Premium Enamelling for Maximum Protection

Crafted with advanced enamelling technology and coated with TJ09, TJ16, and TJ21S high-grade enamels, K Type reactors offer:

• Exceptional corrosion resistance

• High impact durability

• Superior performance under extreme temperature variations

________________________________________

Models & Customization Options

Available in a range of standard capacities from 50L to 16,000L:

K50L, K100L, K200L, K300L, K500L, K1000L, K1500L, K2000L, K3000L, K4000L, K5000L, K6300L, K8000L, K10000L, K12500L, K16000L

________________________________________

Need a Custom Solution?

Contact our team to explore tailored configurations and find the perfect K Type reactor for your specific process needs.

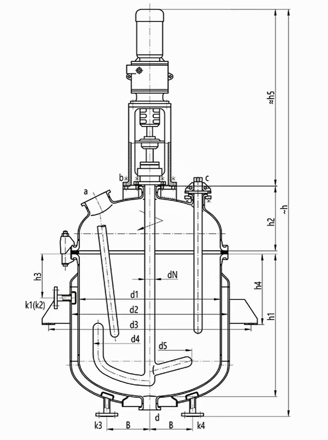

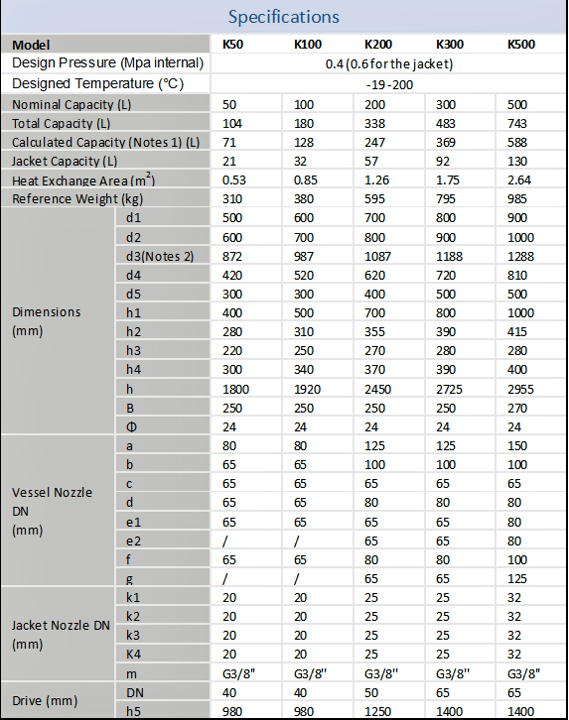

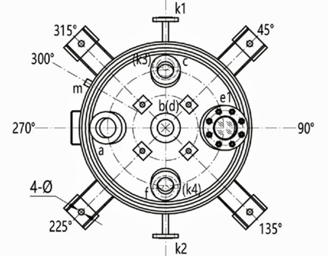

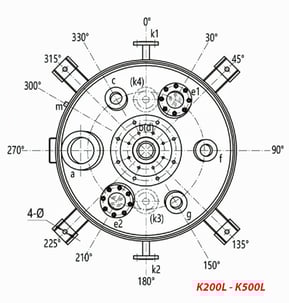

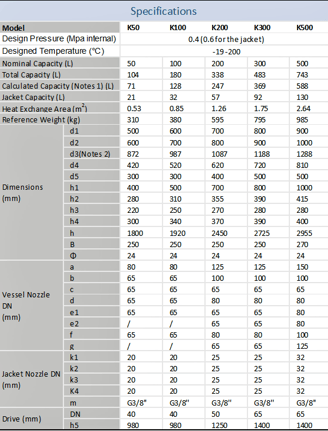

K50L - K500L Specifications

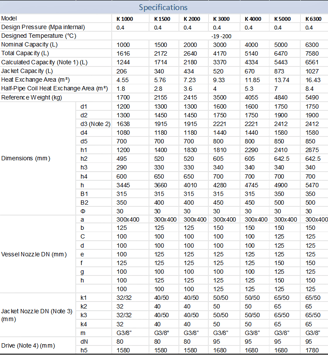

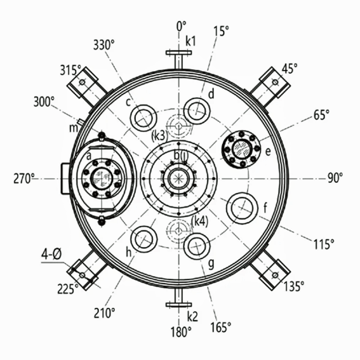

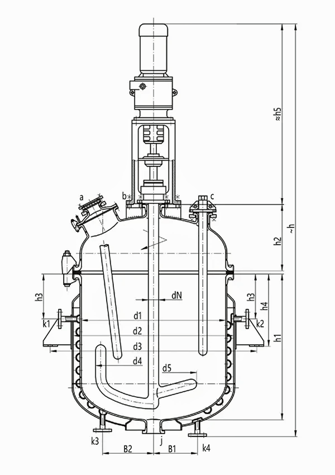

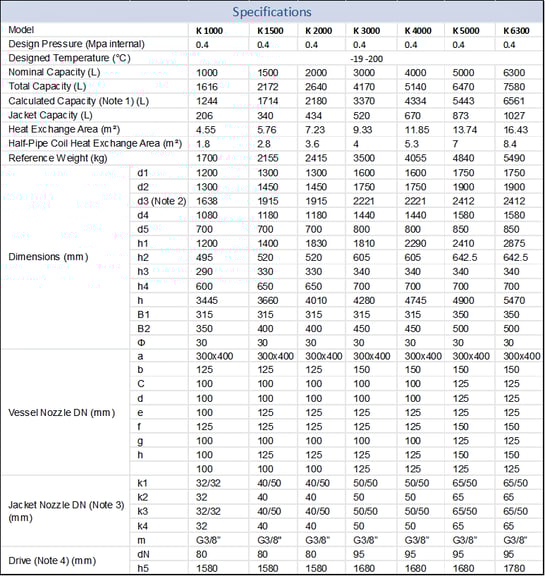

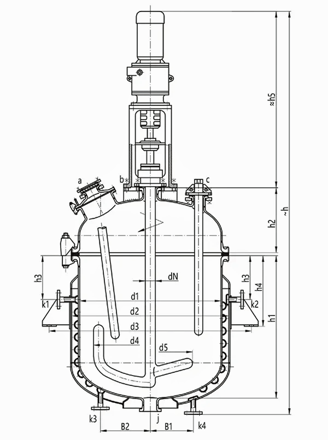

K1000L - K6300L Specifications

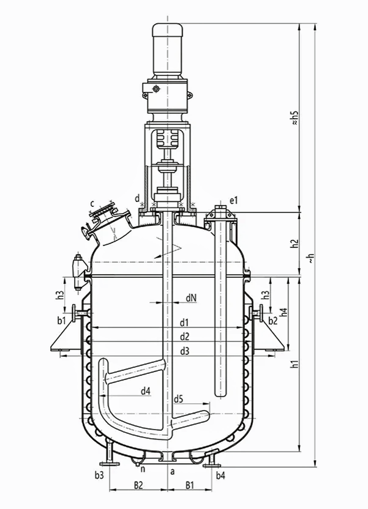

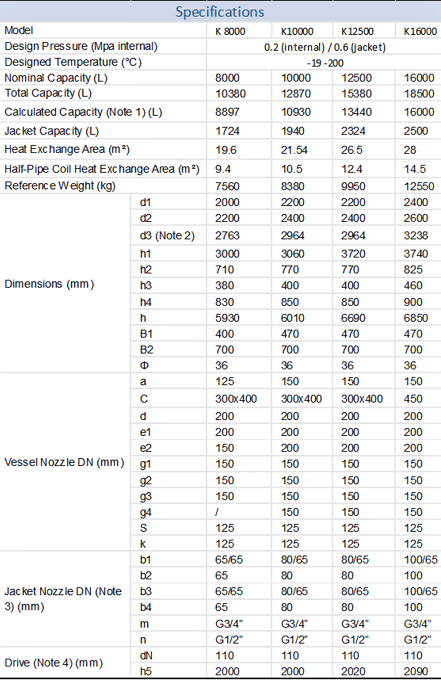

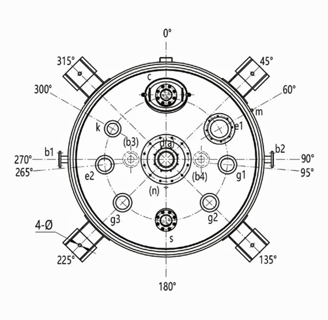

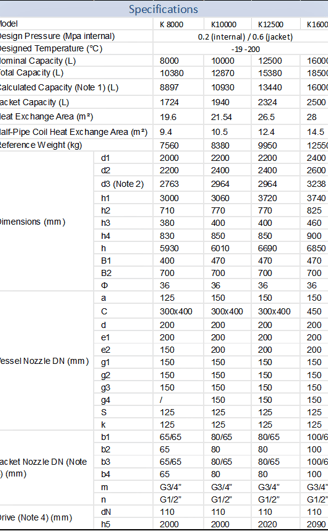

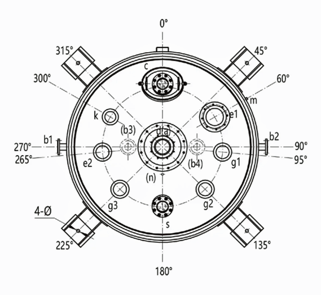

K8000L - K16000L Specifications

Notes

1: Calculated Capacity Refers to the volume below the flange, excluding the flange itself.

2: Support Options The type of support can be specified by the customer. If no specific request is made, lugs will be used as the default support.

Notes

1. Calculated Capacity
   The volume listed reflects the space below the high neck flange and excludes the flange itself.

2. Support Options
   Customers may specify their preferred type of reactor support when placing an order.
   If no preference is given, the default support will be lugs welded to the exterior of the vessel.

3. k1 and k3 Dimensions
   The values for k1 and k3 depend on the heating/cooling system type:

   • Use values before the slash ( / ) for full jackets.

   • Use values after the slash ( / ) for half-pipe jackets.

4. Drive Device Parameters

   • For Reference Only: The drive device specifications provided are for general guidance.

   • Final Selection: The specific type of rack reducer will be chosen based on the application’s requirements.

Notes

1. Calculated Capacity
   The volume listed reflects the space below the high neck flange and excludes the flange itself.

2. Support Options
   Customers may specify their preferred type of reactor support when placing an order.
   If no preference is given, the default support will be lugs welded to the exterior of the vessel.

3. b1 and b3 Dimensions
   The values for b1 and b3 depend on the heating/cooling system type:

   • Use values before the slash ( / ) for full jackets.

   • Use values after the slash ( / ) for half-pipe jackets.

4. Drive Device Parameters

   • For Reference Only: The drive device specifications provided are for general guidance.

   • Final Selection: The specific type of rack reducer will be chosen based on the application’s requirements.
